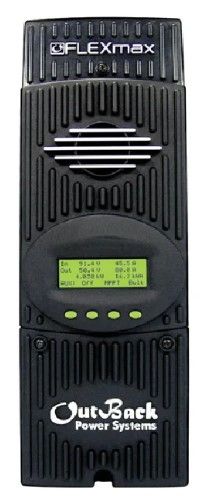

OutBack FLEXmax 80A MPPT Charge Controller

$949.00 + HST

The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power. The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 80 Amps, in ambient temperatures as high as 104°F (40°C).

Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by OutBack Power, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80-character display shows the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled complete system integration.

Features

• Maximum Power Point Tracking (MPPT)
• Active cooling and intelligent thermal management cooling
• Ambient temperatures as high as 104°F (40°C)
• Built-in, backlit 80-character display
• Integrated OutBack network communications
• Nominal battery voltage: 12, 24, 36, 48, or 60VDC
• Maximum input voltage: 150V
• Maximum output current: 80A
• Battery compatibility: Lead acid, Gel, AGM, & Lithium
• Product weight: 12.20lb
• Product dimensions: 16.25" × 5.75" × 4.5"
• Max solar array size:
• 12VDC systems: 1000W
• 24VDC systems: 2000W
• 48VDC systems: 4000W
• Price does not include shipping.
